22"- Single Wall Kit,Two 16" Connections, Grease Duct, Four 90's, 50' Straight, Including No Weld Hood and Fan Connections
SKU:
SWNAKS-KIT21
22"- Single Wall Kit,Two 16" Connections, Grease Duct, Four 90's, 50' Straight, Including No Weld Hood and Fan Connections Fan Connections

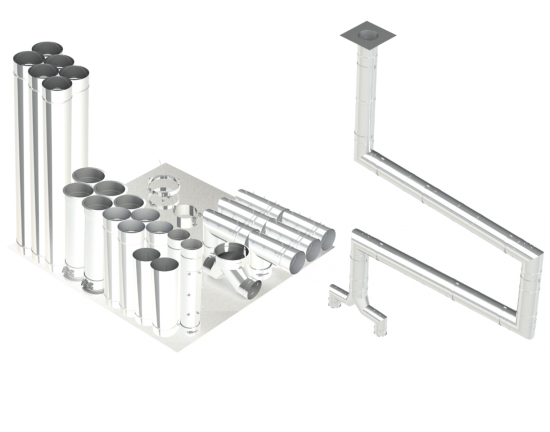

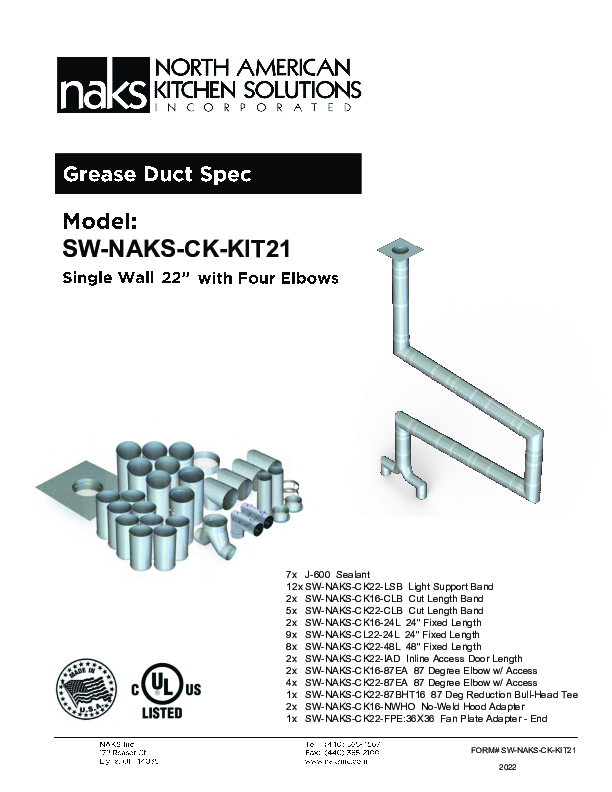

Ductwork Includes:
- 7x J-600 Sealant
- 12x SW-NAKS-CK22-LSB Light Support Band
- 2x SW-NAKS-CK16-CLB Cut Length Band
- 5x SW-NAKS-CK22-CLB Cut Length Band
- 2x SW-NAKS-CK16-24L 24" Fixed Length
- 9x SW-NAKS-CL22-24L 24" Fixed Length
- 8x SW-NAKS-CK22-48L 48" Fixed Length
- 2x SW-NAKS-CK22-IAD Inline Access Door Length
- 2x SW-NAKS-CK16-87EA 87 Degree Elbow w/ Access
- 4x SW-NAKS-CK22-87EA 87 Degree Elbow w/ Access
- 1x SW-NAKS-CK22-87BHT16 87 Deg Reduction Bull-Head Tee
- 2x SW-NAKS-CK16-NWHO No-Weld Hood Adapter
- 1x SW-NAKS-CK22-FPE:36X36 Fan Plate Adapter - End
- 400 Stainless Steel
- UL1978 Listed
- Limited Lifetime Warranty
Features
- UL-1978 listed grease duct
- 400 Stainless Steel construction
- Made in USA
- Overlapping flange connections
- Field cuttable fixed lengths
- Limited Lifetime Warranty
Overview
HoodMart Grease Ducts. MADE IN USA and constructed of all stainless steel. UL-1978 Listed for direct competitiveness against single wall field-welded steel. Conforms to the requirements of NFPA-96. Optional Double Wall Zero Clearance UL-2221. Factory-Built Enclosure listing as an alternate to two layers of field-applied insulation.
LET US HELP YOU
How Can We Help You?
What Type of Hood Do You Need?
Experts Are Ready to Help You:
Custom Size Hoods
Ship in 5-7 Business Days.
22"- Single Wall Kit,Two 16" Connections, Grease Duct, Four 90's, 50' Straight, Including No Weld Hood and Fan Connections
SKU:
SWNAKS-KIT21
Orig.Price $11,812.62 Your Price $10,867.61
Shipping Estimator
22"- Single Wall Kit,Two 16" Connections, Grease Duct, Four 90's, 50' Straight, Including No Weld Hood and Fan Connections Fan Connections
Ductwork Includes:
- 7x J-600 Sealant
- 12x SW-NAKS-CK22-LSB Light Support Band
- 2x SW-NAKS-CK16-CLB Cut Length Band
- 5x SW-NAKS-CK22-CLB Cut Length Band
- 2x SW-NAKS-CK16-24L 24" Fixed Length
- 9x SW-NAKS-CL22-24L 24" Fixed Length
- 8x SW-NAKS-CK22-48L 48" Fixed Length
- 2x SW-NAKS-CK22-IAD Inline Access Door Length
- 2x SW-NAKS-CK16-87EA 87 Degree Elbow w/ Access
- 4x SW-NAKS-CK22-87EA 87 Degree Elbow w/ Access
- 1x SW-NAKS-CK22-87BHT16 87 Deg Reduction Bull-Head Tee
- 2x SW-NAKS-CK16-NWHO No-Weld Hood Adapter
- 1x SW-NAKS-CK22-FPE:36X36 Fan Plate Adapter - End
- 400 Stainless Steel
- UL1978 Listed
- Limited Lifetime Warranty
Features
- UL-1978 listed grease duct
- 400 Stainless Steel construction
- Made in USA
- Overlapping flange connections
- Field cuttable fixed lengths
- Limited Lifetime Warranty
Overview
HoodMart Grease Ducts. MADE IN USA and constructed of all stainless steel. UL-1978 Listed for direct competitiveness against single wall field-welded steel. Conforms to the requirements of NFPA-96. Optional Double Wall Zero Clearance UL-2221. Factory-Built Enclosure listing as an alternate to two layers of field-applied insulation.
