Your Utility Set Include:

• Direct Drive Utility Set 2,000 CFM, 1.0" SP 1.5 HP, 1PH
• Exhaust fan handles a Maximum of 2,000 CFM's @ 1.0" wg ESP
• Made in USA
• CFM Range: 400-2,000
• 1.500 HP, 3 Phase, 208/230/460V, 60 Hz, ODP (Open Drip Proof)
• 15" Blower
• Utility Set Grease Cup
• 24 month parts-only warranty

Your Utility Set Features

• Ventilated motor housing for motor, shaft and drive protection
• Tilt out wheel – easy access during maintenance, automatic safety lock with manual release
• Interlocked disconnect switch
• Non-overloading, welded aluminum backward inclined wheel is statically and dynamically balanced and permits usage on high static pressure applications
• Motor base and shaft seals provide a double layer of protection to eliminate water leaks into the building and grease build-up on motor
• 2" grease drain fully welded onto discharge elbow
• Lock and retaining pin - keep wheel centered over the inlet

Your Utility Set Overview

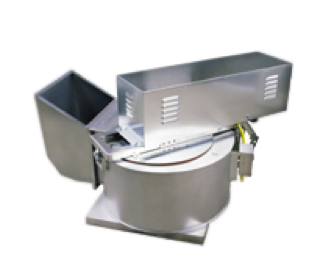

"TK-RE centrifugal up blast restaurant utility exhaust ventilators are engineered to discharge grease laden vapors, fumes and other contaminants vertically away from the building. Model TK-RE is specifically intended for high temperature and heavy grease applications. All models shall be ETL Listed and comply with UL705 (electrical), UL762, and ULC-S645 Standards and CSA Std C22.2, No 113. Fan shall bear the AMCA certified ratings seal for sound and air performance."
