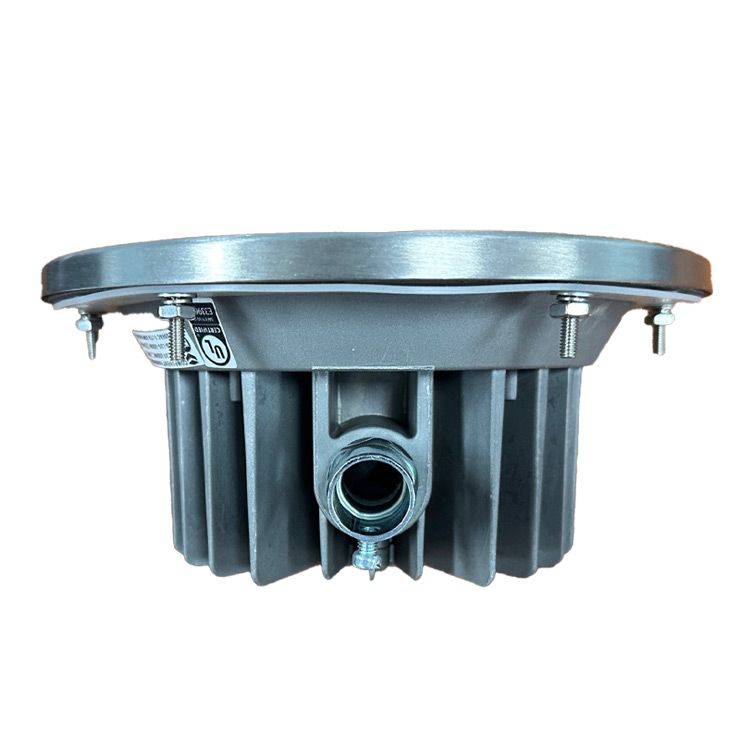

Recessed LED Hood Light
SKU:
LEDREC
RECESSED LED HOOD LIGHT FEATURES:
- Energy efficient 20 Watt LED array emits 1,800 lumens – 90 lumens/watt
- Saves up to 80% energy consumption as compared to a standard 100W incandescent light
- May be wired with a dimmer switch to control ideal lighting conditions at the work surface
- 50,000 hour service life – 50 times longer than a standard 100W incandescent bulb
- Rated to a maximum operating temperature of 80°C (176°F)
- Passivated aluminum heat sink effectively dissipates heat to prolong the life of the LEDs and on-board driver
- Suitable for use in wet or dry locations
- Designed for easy installation
- Furnished with tempered glass lens and stainless steel frame
RECESSED LED HOOD LIGHT SPECIFICATIONS:
- Wattage: 20W
- Voltage: 120 VAC, 60 Hz
- Amperage: 0.17A
- Initial Lumens: 1800
- Efficacy: 90 Lumens/Watt
- CRI: > 80
- Beam Angle: 106º
- Color Temp +/- 175: 3985
- Flammability Rating: VW-1 (UL), FT1 (CSA)
- Overall Size: 7.99" Dia. X 3.56" H
- Driver: Driver-on-Board, 20W
- Ports: 2 each (1/2"-14 NPT)
- Operating Temp Range: 32ºF - 176ºF (0ºC - 80ºC)
- Dimmable: 0-10 VDC Dimmer
- Lens Cover: Tempered Glass/Stainless Steel
- Warranty: 5 years
