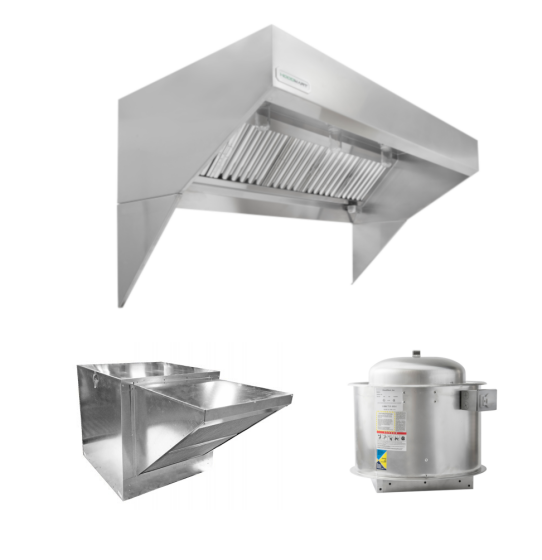

Your 20' x 48" Low Ceiling Sloped Front Wall Canopy Hood Package w/Makeup Air Includes:

• Exhaust Fan (1pc) 52B, 5000 CFM, 115V
• Supply Fan (1pc) SF10 Untempered 4000 CFM, .250 SP, 230V, 60HZ
• Mounting Curb Wall / Roof (2pcs)
• New 304 Stainless (IPS) Internal Perforated Supply Plenum
• Stainless Steel UL listed Grease Baffle Filters
• Pre-Wired Light(s)
• Stainless Grease Cup(s)
• Hanging Brackets

See more exhaust hood pictures on Pinterest...

Restaurant Hood Package Features

• All hoods are constructed of 18 gauge steel
• All joints are welded liquid tight, without seams by an automatic wire fed mig welder
• Made in USA
• All hoods are UL710 Listed and built in accordance with NFPA 96, NSF specifications.
• NEW IPS (Internal Perforated Supply Plenum) is manufactured with High Quality 304 Stainless Perforated material.
• Internal Perforated Supply Plenum enhances mixing Supply Air into the primary Effluent air being discharged.
• Removable for ease of cleaning.
• Grease trough is made to receive grease extracted by filters
• Stainless Steel UL listed Grease Baffle Filters
• A stainless steel cup attaches to the tray that runs beneath the entire length of the hood
• 2 Year Warranty
• Ships in multiple hood sections

Commercial Kitchen Makeup Air Hoods - Overview

HoodMart's Short Cycle Make Up Air with IPS (Internal Perforated Supply) removes grease laden vapors from the air while replacing air without causing negative air pressure. This allows using a fresh air makeup air fan instead of a costly tempered air unit. IPS (Internal Perforated Supply Plenum) takes advantage of the Coanda Effect created inside the hood, further assisting with capture and containment. The design of makeup air hoods allows for the comfort of the employees working in the kitchen to maintain a comfortable temperature for working and does not have hot air blowing down on their head as they are cooking and preparing food.

However, HoodMart manufactures commercial kitchen makeup air hoods to work for all kitchen applications with the customer’s needs and wants in mind. Therefore, we manufacture a variety of Makeup hood styles: Short Cycle, Perforated Supply Plenum PSP, Back Return Supply Plenum BSP, and you can even use an Exhaust option with using diffusers in the ceiling.

HoodMart also offers heating and cooling makeup air options if required. HoodMart Tempered MUA units are complete in every aspect, with all necessary gas and electrical controls included. Attractive standard features as well as numerous options and accessories insure maximum design flexibility and application versatility. Airflow rates from 800 to 13,000 CFMs with 100% fresh air heated by either Natural or LP gas. Evaporative Cooling and Heat/Cool combination units are available.
