12" - Double Wall Kit, Reduced Clearance, Grease Duct, Four 90's, 50' Straight, Including No Weld Hood and Fan Connections
SKU:
DWNAKS-RC-KIT06
![UL Certified Logos]({{media url="wysiwyg/Hoodmart/crop2.png"}})
DUCTWORK INCLUDES:
- Recommended Duct Sizes Heavy Duty Hood Lengths 4'6" -5' 11"
- Recommended Duct Sizes Medium Duty Hood Lengths 5'6"-7'5"
- No weld hood and fan adapters
- 6x 48" Fixed Length
- 1x 36" Fixed Length
- 3x 24" Fixed Length
- 3 x 12" Fixed Length
- 2x 24" Adjustable Length
- 10 x Support Bands
- 1 x Plate Support
- 4x 87 Degree Elbows
- 2x Inline Access Doors
- 15 x 12LB Locking Bands
- 15 x V Bands
- 3 x J-600 Sealant
- 400 Series Outer Duct Jacket and Inner Jacket
- UL-1978 Listed
- Limited Lifetime Warranty
FEATURES:
- Double Wall Reduced Clearance
- UL-1978 Listed Grease Duct
- Made in USA
- Overlapping flange connections
- Adjustable lengths
- 400 Series Outer Duct Jacket and Inner Jacket
- Ceramic fiber insulation between inner/outer jacket
- Limited Lifetime Warranty
DUCTWORK OVERVIEW
HoodMart Grease Ducts. MADE IN USA and constructed of all stainless steel. UL-1978 Listed for direct competitiveness against single wall field-welded steel. Conforms to the requirements of NFPA-96. Double Wall Reduced Clearance is UL2221 and UL1978 Listed. The Double Wall Reduced Clearance models are two-hour rated resistant enclosure/duct assembly and can be used as an alternative to the two layers of field applied insulation.
LET US HELP YOU
How Can We Help You?
What Type of Hood Do You Need?
Experts Are Ready to Help You:
Custom Size Hoods
Ship in 5-7 Business Days.
12" - Double Wall Kit, Reduced Clearance, Grease Duct, Four 90's, 50' Straight, Including No Weld Hood and Fan Connections
SKU:
DWNAKS-RC-KIT06
Orig.Price $12,915.66 Your Price $11,882.41
Shipping Estimator
DUCTWORK INCLUDES:
- Recommended Duct Sizes Heavy Duty Hood Lengths 4'6" -5' 11"
- Recommended Duct Sizes Medium Duty Hood Lengths 5'6"-7'5"
- No weld hood and fan adapters
- 6x 48" Fixed Length
- 1x 36" Fixed Length
- 3x 24" Fixed Length
- 3 x 12" Fixed Length
- 2x 24" Adjustable Length
- 10 x Support Bands
- 1 x Plate Support
- 4x 87 Degree Elbows
- 2x Inline Access Doors
- 15 x 12LB Locking Bands
- 15 x V Bands
- 3 x J-600 Sealant
- 400 Series Outer Duct Jacket and Inner Jacket
- UL-1978 Listed
- Limited Lifetime Warranty
FEATURES:
- Double Wall Reduced Clearance
- UL-1978 Listed Grease Duct
- Made in USA
- Overlapping flange connections
- Adjustable lengths
- 400 Series Outer Duct Jacket and Inner Jacket
- Ceramic fiber insulation between inner/outer jacket
- Limited Lifetime Warranty
DUCTWORK OVERVIEW
HoodMart Grease Ducts. MADE IN USA and constructed of all stainless steel. UL-1978 Listed for direct competitiveness against single wall field-welded steel. Conforms to the requirements of NFPA-96. Double Wall Reduced Clearance is UL2221 and UL1978 Listed. The Double Wall Reduced Clearance models are two-hour rated resistant enclosure/duct assembly and can be used as an alternative to the two layers of field applied insulation.

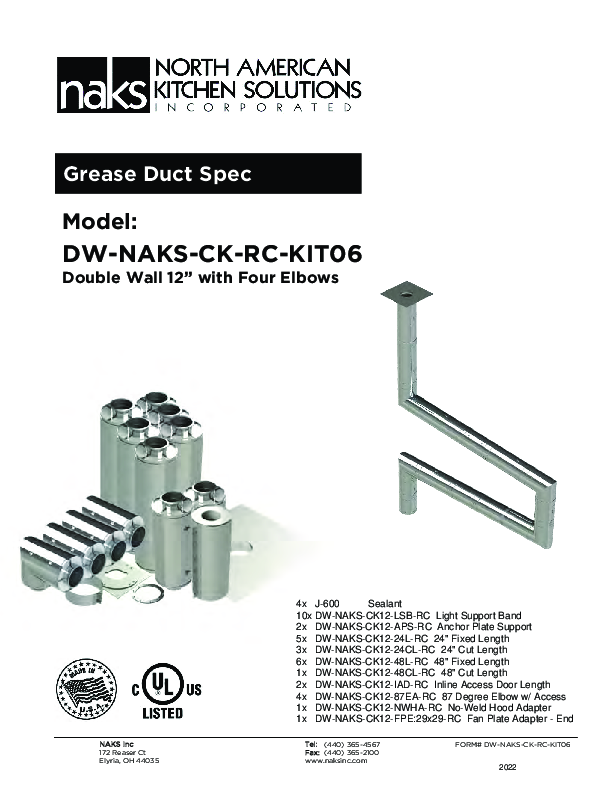

Spec Sheet Downloads:
