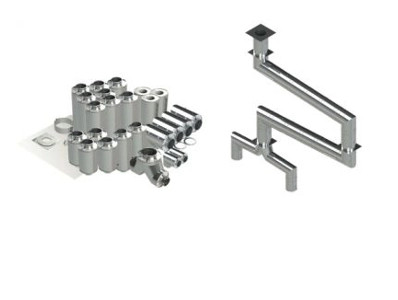

Double Wall Kit - Straight W Pant Leg and 4 – 90'S
Please refer to the Duct Diameter sizing chart by Hood Size and CFMS.
Chart Diameters noted reflect interior dimensions.
18"- Double Wall Kit, Reduced Clearance, Two 12" Connections, Grease Duct, Four 90's, 50' Straight, Including No Weld Hood and Fan Connections- Recommended Duct Sizes Heavy Duty Hood Lengths 10'-11'11"
- Recommended Duct Sizes Medium Duty Hood Lengths 11'-15'5"
- Made in USA
- 6x J-600 Sealant
- 12x DW-NAKS-CK18-LSB-RC Light Support Band
- 2x DW-NAKS-CK18-APS-RC Anchor Plate Support
- 2x DW-NAKS-CK12-24CL-RC 24" Cut Length
- 1x DW-NAKS-CK18-24CL-RC 24" Cut Length
- 6x DW-NAKS-CK18-48L-RC 48" Fixed Length
- 4x DW-NAKS-CK18-48CL-RC 48" Cut Length
- 2x DW-NAKS-CK18-IAD-RC Inline Access Door Length
- 2x DW-NAKS-CK12-87EA-RC 87 Degree Elbow w/ Access
- 4x DW-NAKS-CK18-87EA-RC 87 Degree Elbow w/ Access
- 1x DW-NAKS-CK18-87BHT12-RC 87 Deg Red Bull-Head Tee
- 2x DW-NAKS-CK12-NWHA-RC No-Weld Hood Adapter
- 1x DW-NAKS-CK18-FPE:36x36-RC Fan Plate Adapter - End
- 400 Series Outer /Inner Duct Jacket
- UL-1978 Listed
- Limited Lifetime Warranty
Orig.Price $20,682.90 Your Price $19,028.27
20"- Double Wall Kit, Reduced Clearance, Two 14" Connections, Grease Duct, Four 90's, 50' Straight, Including No Weld Hood and Fan Connections- Recommended Duct Sizes Heavy Duty Hood Lengths 12'-15'5"
- Recommended Duct Sizes Medium Duty Hood Lengths 15'6"-20'
- Made in USA
- 7x J-600 Sealant
- 12x DW-NAKS-CK20-LSB-RC Light Support Band
- 2x DW-NAKS-CK20-APS-RC Anchor Plate Support
- 2x DW-NAKS-CK14-24CL-RC 24" Cut Length
- 1x DW-NAKS-CK20-24CL-RC 24" Cut Length
- 6x DW-NAKS-CK20-48L-RC 48" Fixed Length
- 4x DW-NAKS-CK20-48CL-RC 48" Cut Length
- 2x DW-NAKS-CK20-IAD-RC Inline Access Door Length
- 2x DW-NAKS-CK14-87EA-RC 87 Degree Elbow w/ Access
- 4x DW-NAKS-CK20-87EA-RC 87 Degree Elbow w/ Access
- 1x DW-NAKS-CK20-87BHT14-RC 87 Deg Red Bull-Head Tee
- 2x DW-NAKS-CK14-NWHO-RC No-Weld Hood Adapter - Oval
- 1x DW-NAKS-CK20-FPE:36x36-RC Fan Plate Adapter - End
- 400 Series Outer /Inner Duct Jacket
- UL-1978 Listed
- Limited Lifetime Warranty
Orig.Price $22,869.48 Your Price $21,039.92
22"- Double Wall Kit, Reduced Clearance, Two 16" Connections, Grease Duct, Four 90's, 50' Straight, Including No Weld Hood and Fan Connections- Recommended Duct Sizes Heavy Duty Hood Lengths 15'6"-20'
- 87 Degree Reduction Bull-Head Tee
- Made in USA
- 8x J-600 Sealant
- 12x DW-NAKS-CK22-LSB-RC Light Support Band
- 2x DW-NAKS-CK22-APS-RC Anchor Plate Support
- 2x DW-NAKS-CK16-24CL-RC 24" Cut Length
- 1x DW-NAKS-CK22-24CL-RC 24" Cut Length
- 6x DW-NAKS-CK22-48L-RC 48" Fixed Length
- 4x DW-NAKS-CK22-48CL-RC 48" Cut Length
- 2x DW-NAKS-CK22-IAD-RC Inline Access Door Length
- 2x DW-NAKS-CK16-87EA-RC 87 Degree Elbow w/ Access
- 4x DW-NAKS-CK22-87EA-RC 87 Degree Elbow w/ Access
- 1x DW-NAKS-CK22-87BHT16-RC 87 Deg Red Bull-Head Tee
- 2x DW-NAKS-CK16-NWHO-RC No-Weld Hood Adapter - Oval
- 1x DW-NAKS-CK22-FPE:36x36-RC Fan Plate Adapter - End
- 400 Series Outer /Inner Duct Jacket
- UL-1978 Listed
- Limited Lifetime Warranty
Orig.Price $24,932.42 Your Price $22,937.83
