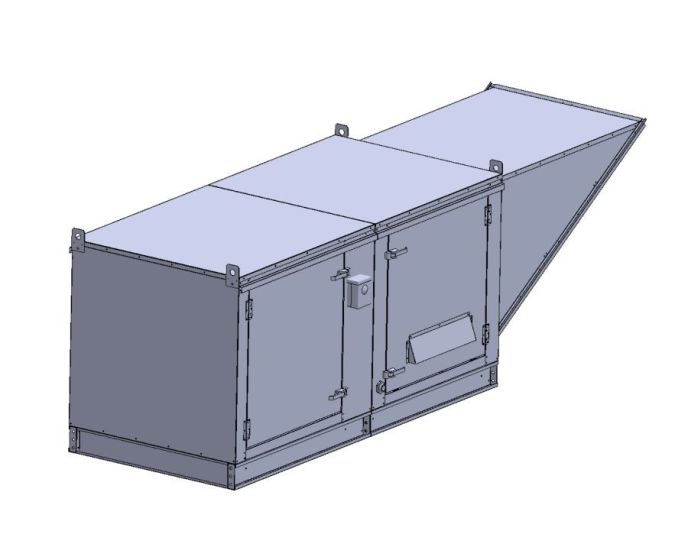

TK4ECDD- 3 PH Direct Drive Direct Gas Fired Heated Makeup Air Unit-8200 CFM
SKU:
TK4ECDD-3PH-FF-8200
TK4ECDD- 3 PH Direct Drive Direct Gas Fired Heated Makeup Air Unit-8200 CFM
- Supply fan handles a Maximum of 8,200 CFM's @ 0.5" wg ESP
- Max Temperature Rise of 100 Deg F. 885,600 BTU's, Natural Gas/LP Burner
- 4.700 HP, 3 Phase, 208/230/460V, 60 Hz, ODP-ECM (Open Drip Proof Electronically Commutated Motor)
- 28" Blower
- Motorized Back-Draft Damper
- Curb or Indoor Hanging Cradle (Hanging Rods by Others)
- 2 Year Parts Only Warranty.
Features
- Sloped Screened Intake with Washable Metal Mesh Filters
- Discharge Temperature Control - 40-90 degree F (4-32 degree C)
- 3/4" Gas Line Manifold Constructed in Conformance to ANSI Standards
- 2 Year Parts Only Warranty.
LET US HELP YOU
How Can We Help You?
What Type of Hood Do You Need?
Experts Are Ready to Help You:
Custom Size Hoods
Ship in 5-7 Business Days.
TK4ECDD- 3 PH Direct Drive Direct Gas Fired Heated Makeup Air Unit-8200 CFM
SKU:
TK4ECDD-3PH-FF-8200
Orig.Price 16.930,42 $ Your Price 15.575,98 $
Shipping Estimator
TK4ECDD- 3 PH Direct Drive Direct Gas Fired Heated Makeup Air Unit-8200 CFM
- Supply fan handles a Maximum of 8,200 CFM's @ 0.5" wg ESP
- Max Temperature Rise of 100 Deg F. 885,600 BTU's, Natural Gas/LP Burner
- 4.700 HP, 3 Phase, 208/230/460V, 60 Hz, ODP-ECM (Open Drip Proof Electronically Commutated Motor)
- 28" Blower
- Motorized Back-Draft Damper
- Curb or Indoor Hanging Cradle (Hanging Rods by Others)
- 2 Year Parts Only Warranty.
Features
- Sloped Screened Intake with Washable Metal Mesh Filters
- Discharge Temperature Control - 40-90 degree F (4-32 degree C)
- 3/4" Gas Line Manifold Constructed in Conformance to ANSI Standards
- 2 Year Parts Only Warranty.
Spec Sheet Downloads: CONTACT FORM
