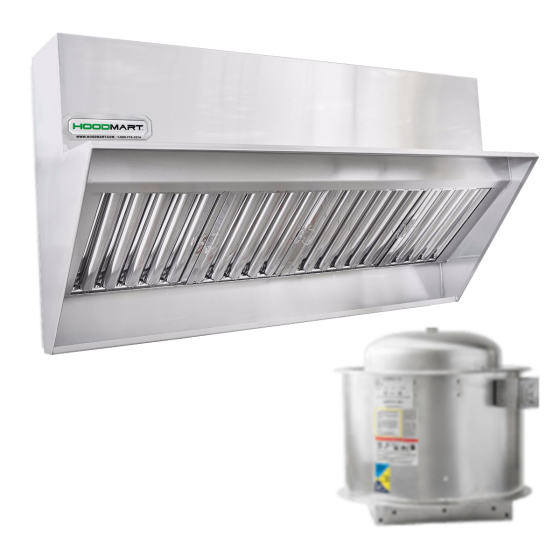

Your Restaurant Low Proximity Backshelf Hood System Includes:

• Constructed with 18 Gauge 430 SS
• Stainless Steel UL Listed Grease Baffle Filters

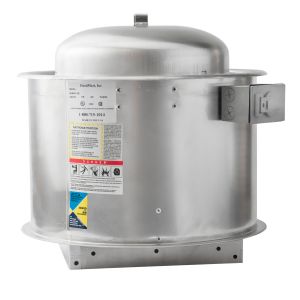

• Exhaust Fan 28B (2), 5000 CFM, 115/230 V

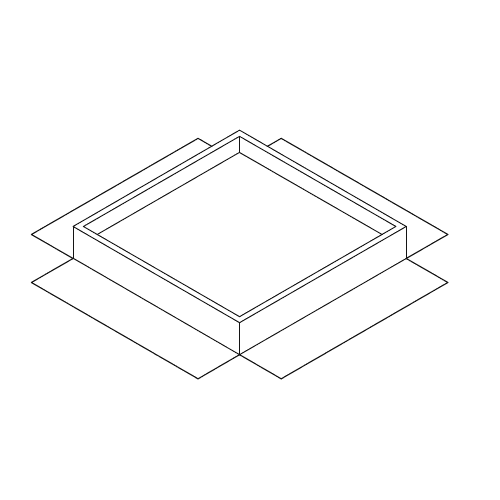

• Mounting Curb Roof/Wall
• Stainless Grease Cup
• Hanging Brackets (Shipped Loose)

Your Restaurant Low Proximity Backshelf Hood System Features:

• 20' x 23" Low Proximity Backshelf Exhaust Hood System
• Width 23" (Front to Back)
• Made in USA
• Constructed with 18 Gauge 430 SS
• Exhaust Fan w/ Curb
• Hinge Kit
• All hoods are UL Listed to Ansi/UL 710, and CAN/ULC
• Zero Clearance models available.
• 2 Year Warranty

Hood System Overview

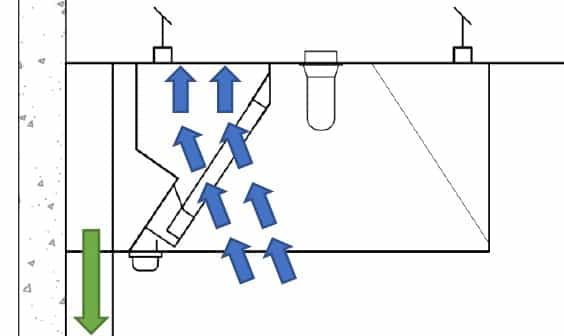

Our Type 1 Low Proximity Backshelf Exhaust only commercial kitchen hood is designed to remove grease laden vapors. The Low Proximity Backshelf hood to be used when the minimum distance from the floor to the bottom edge of the hood cannot be met with a standard exhaust hood canopy. The Low Proximity Backshelf hood relies on the closeness of the hood to the cooking surface for capture of the grase laden vapors. The Low proximity Backshelf hood allows for a underhang of 12". This is measured horizontally from the front edge of the cooking equipment . Commercial kitchen exhaust hoods and ventilation are the most important part of your restaurant and the ventilation system that connects to it. The exhaust hoods equipped with our centrifugal upblast fans or blowers will significantly reduce odors and improve the indoor air quality inside your kitchen.
