"Guaranteed To Pass ALL City & State Codes. Quality Hoods You Can Trust, Quick Delivery... NSF, UL, NFPA & ETL APPROVED! Designed for use over cooking surface temperatures of 450, 600, 700 degrees. HoodMart offers an optional low profile hood to accomodate low ceiling applications. You've found the perfect restaurant makeup air hood. The HoodMart SUPPORT Team will answer ALL your exhaust hood questions and remove fear or confusion about your commercial kitchen ventilation needs. Our short cycle stainless steel makeup air hood (compensating hood) is designed to remove grease laden vapors from the air. The short cycle hood provides superior performance with a low operating cost. The hoods are constructed with 430 stainless steel where exposed, and the steel is polished to a number 4 finish. "

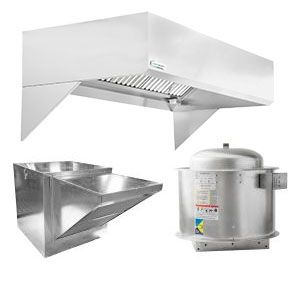

Your Restaurant Hood System w/ Short Cycle Makeup-Air  Include:

• Constructed 18 gauge 430 Stainless Steel Where Exposed
• Stainless Steel UL Listed Grease Baffle Filters
• Exhaust Fan (1pc) 52B 4750 CFM, 115/230V
• Supply Fan (1pc) SF10 Untempered 3800 CFM, .250 SP, 230V, 60HZ
• Stainless Steel UL listed Grease Baffle Filters
• Mounting Curb Wall / Roof (2pcs)
• New 304 Stainless (IPS) Internal Perforated Supply Plenum
• Pre-Wired Light(s)
• Stainless Grease Cup(s)
• Hanging Brackets
• Built in 3" Air Gap

See more exhaust hood pictures on Pinterest...

Restaurant Hood System w/ Short Cycle Makeup-Air 19'x48" Features

• 19 FT Hood System
• Constructed with 18 Gauge 430 SS
• Made in USA
• Built in 3"" Air Gap on back of hood
• Exhaust Fan w/ Curb
• Untempered Make Up Air Fan w/Curb
• Stainless Steel UL listed Grease Baffle Filters
• All hoods are UL710 Listed and built in accordance with NFPA 96, NSF specifications.
• NEW IPS (Internal Perforated Supply Plenum) is manufactured with High Quality 304 Stainless Perforated material.
• Internal Perforated Supply Plenum enhances mixing Supply Air into the primary Effluent air being discharged.
• Removable for ease of cleaning.
• 2 Year Warranty

Restaurant Hood System w/ Short Cycle Makeup-Air 19'x48"

HoodMart's Short Cycle Make Up Air with IPS (Internal Perforated Supply) removes grease laden vapors from the air while replacing air without causing negative air pressure. This allows using a fresh air makeup air fan instead of a costly tempered air unit. IPS (Internal Perforated Supply Plenum) takes advantage of the Coanda Effect created inside the hood, further assisting with capture and containment. The design of makeup air hoods allows for the comfort of the employees working in the kitchen to maintain a comfortable temperature for working and does not have hot air blowing down on their head as they are cooking and preparing food.

However, HoodMart manufactures commercial kitchen makeup air hoods to work for all kitchen applications with the customer’s needs and wants in mind. Therefore, we manufacture a variety of Makeup hood styles: Short Cycle, Perforated Supply Plenum PSP, Back Return Supply Plenum BSP, and you can even use an Exhaust option with using diffusers in the ceiling.

HoodMart also offers heating and cooling makeup air options if required. HoodMart Tempered MUA units are complete in every aspect, with all necessary gas and electrical controls included. Attractive standard features as well as numerous options and accessories insure maximum design flexibility and application versatility. Airflow rates from 800 to 13,000 CFMs with 100% fresh air heated by either Natural or LP gas. Evaporative Cooling and Heat/Cool combination units are available.
