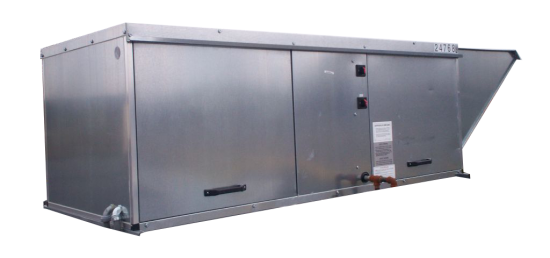

T4-3PH - Direct Fired Gas Heated Supply Air/EVAP
SKU:
T4-EVAP-3PH
Gas-Fired Tempered Make-Up Air Unit\Maximum 8100 CFM's, 208-230V, 3-Phase with Motorized Damper and a 18" Blower
Your Makeup Air Fans Include:
- Supply fan handles a Maximum of 2200 CFM's @ 0.55" S.P.
- 745000 BTU's. , 75 degree Fahrenheit ( 24 degrees Celsius) Temp Rise
- 5 HP, 3 Phase, 460V, 60 Hz, 8.2 FLA, ODP (Open Drip Proof)
- Motorized Back-Draft Damper
- Curb - Insulation Available
- Recommended for hood sizes 21' and greater
Makeup Air Fans Features
- Sloped Clam-shell Air Intake, inlcudes easy to clean Aluminum mesh filters
- Maxitrol Series 14 Discharge Temperature Control - 40-90 degree F (4-32 degree C)
- Made in USA
- 3/4" Gas Line Manifold constructed in conformance to ANSI Standards and Industrial Risk Insurers (IRI) insurance requirements
- Limited Warranty - 2 years parts and 90 days labor
Hood System Overview
With value-driven design excellence, T-Series direct-fired make up air unit systems offer unsurpassed economy, application versatility, low maintenance durability, and exceptional product support. The line is ETL certified to ANSI standards. With direct evaporative cooling, outside air is drawn through a water-saturated medium and cooled by evaporation
LET US HELP YOU
How Can We Help You?
What Type of Hood Do You Need?
Experts Are Ready to Help You:
Custom Size Hoods
Ship in 5-7 Business Days.
T4-3PH - Direct Fired Gas Heated Supply Air/EVAP
SKU:
T4-EVAP-3PH
Orig.Price 18.556,29 $ Your Price 17.071,79 $
Shipping Estimator
Comprueba los artículos para añadir a la cesta o
Gas-Fired Tempered Make-Up Air Unit\Maximum 8100 CFM's, 208-230V, 3-Phase with Motorized Damper and a 18" Blower
Your Makeup Air Fans Include:
- Supply fan handles a Maximum of 2200 CFM's @ 0.55" S.P.
- 745000 BTU's. , 75 degree Fahrenheit ( 24 degrees Celsius) Temp Rise
- 5 HP, 3 Phase, 460V, 60 Hz, 8.2 FLA, ODP (Open Drip Proof)
- Motorized Back-Draft Damper
- Curb - Insulation Available
- Recommended for hood sizes 21' and greater
Makeup Air Fans Features
- Sloped Clam-shell Air Intake, inlcudes easy to clean Aluminum mesh filters
- Maxitrol Series 14 Discharge Temperature Control - 40-90 degree F (4-32 degree C)
- Made in USA
- 3/4" Gas Line Manifold constructed in conformance to ANSI Standards and Industrial Risk Insurers (IRI) insurance requirements
- Limited Warranty - 2 years parts and 90 days labor
Hood System Overview
With value-driven design excellence, T-Series direct-fired make up air unit systems offer unsurpassed economy, application versatility, low maintenance durability, and exceptional product support. The line is ETL certified to ANSI standards. With direct evaporative cooling, outside air is drawn through a water-saturated medium and cooled by evaporation
Spec Sheet Downloads: CONTACT FORM
