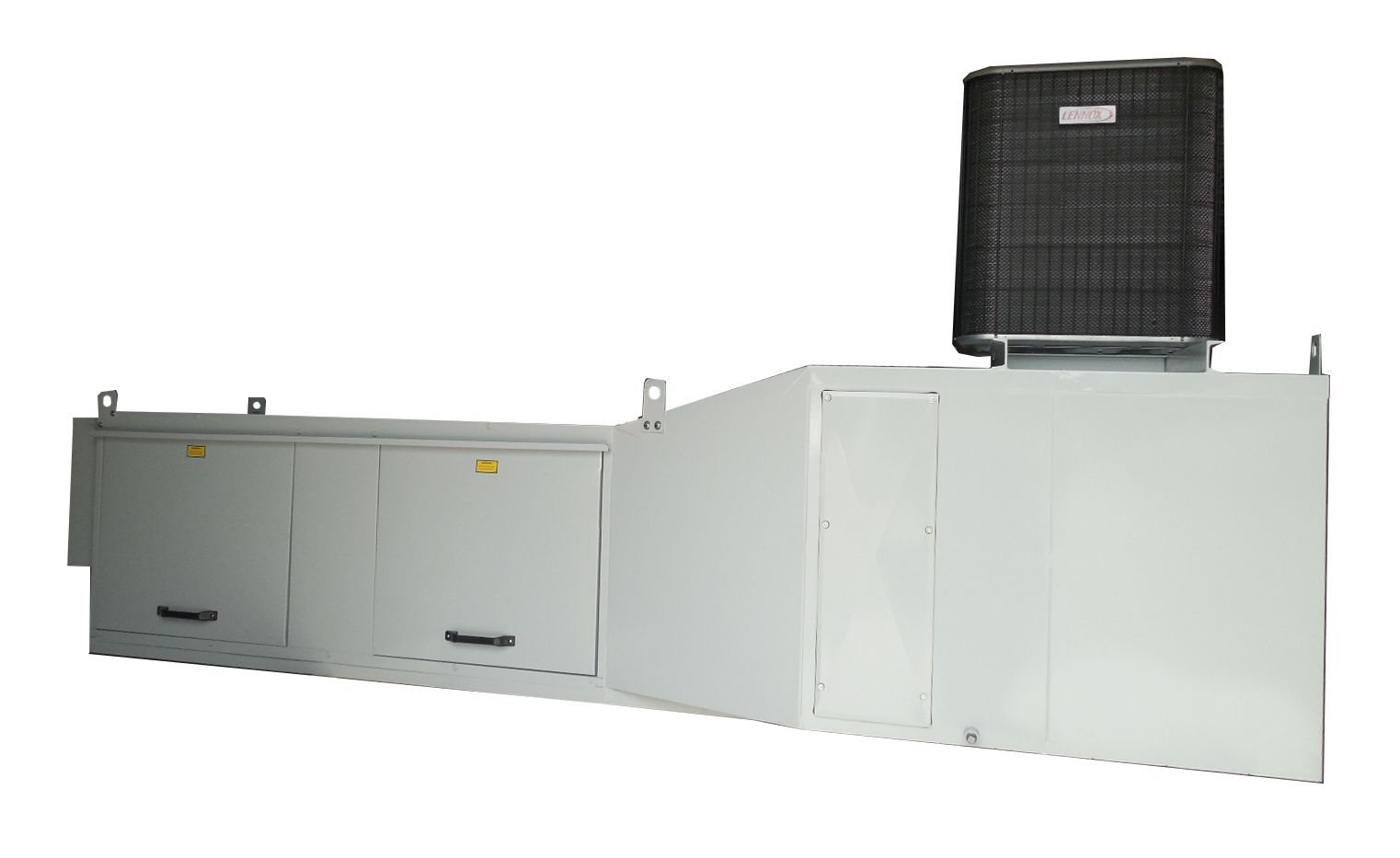

Gas-Fired Tempered Make-Up Air Unit with Direct Expansion/Maximum 8100 CFM's, 208-230V, 3-Phase with Motorized Damper and a 18" Blower and a 18" Blower

Your Makeup Air Fans Include:

• Supply fan handles a Maximum of 2200 CFM's @ 0.55" S.P.
• 745000 BTU's. , 75 degree Fahrenheit ( 24 degrees Celsius) Temp Rise
• 5.000 HP, 3 Phase, 460V, 60 Hz, 8.2 FLA, ODP (Open Drip Proof)
• Motorized Back-Draft Damper
• Curb - Insulation Available
• Water Pump - 0.166 HP, 3 Phase, 230V, 60 Hz, 0.5 FLA
• Recommended for hood sizes 21' and greater

Makeup Air Fans Features

• Sloped Clam-shell Air Intake, inlcudes easy to clean Aluminum mesh filters
• Maxitrol Series 14 Discharge Temperature Control - 40-90 degree F (4-32 degree C)
• Made in USA
• 3/4" Gas Line Manifold constructed in conformance to ANSI Standards and Industrial Risk Insurers (IRI) insurance requirements
• Heavy Gauge Stainless Steel Condensate Pans Hot Gas Bypass
• 5/8” Diameter, 0.016” Wall (Minimum) Copper Tubes 0.006” Thick (Minimum) Aluminum Fins
• Limited Warranty - 2 years parts and 90 days labor

Hood System Overview

With value-driven design excellence, T-Series direct-fired make up air unit systems offer unsurpassed economy, application versatility, low maintenance durability, and exceptional product support. The line is ETL certified to ANSI standards. With direct evaporative cooling, outside air is drawn through a water-saturated medium and cooled by evaporation
