Your Electrical Control Package -UL listed - 4 Exhaust/4 Supply:

• 8 Fans – 115/230V Single Phase (4 Exhaust/4 Supply)
• 4 Fans - 230V Three Phase (2 Exhaust/2 Supply)
• Fans 1 ½ HP and above Only 230/1/60 or 3PH
• Hinger door for easy access
• Fan and light switches are conveniently placed on the front of the panel
• Prewired from factory
• Includes (4) 10K ohm thermistor type Duct Thermostats / Housing / ¼” Seals
• Room Temperature Sensor
• Fire system activated which also turns off supply fan
• Reduced high voltage wiring to increase safety and reduce installation cost

Electrical Control Package -UL listed - 4 Exhaust/4 Supply Features

• Electrical Control Packages are designed to control the Exhaust and Supply fans, as well as hood lights. Includes Room Temperature/Humidity Sensor. The panel will also activate the kitchen exhaust fan(s) if they are off. The panel can be used to signal a shunt trip breaker (supplied by others) or an electric gas valve (supplied by others) for appliance and outlet shutdown.
• All fans 1 ½ Hp and above must be wired at 230/1/60 or 3PH
• 1 Year Warranty

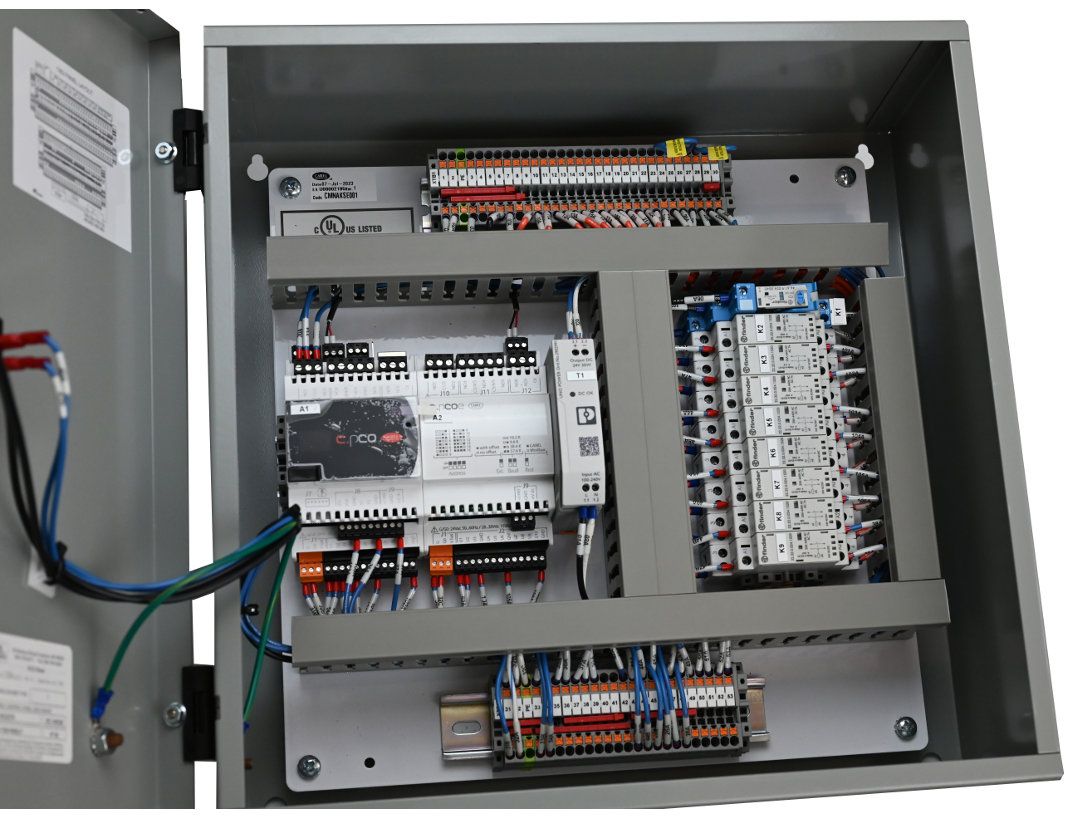

Control Box Overview

Electrical Control box is compact, prewired and offers a low cost method of starting two or four fan motors. The relay box can be used in place of larger, more expensive starters when supply and exhaust must operate from one switch.
