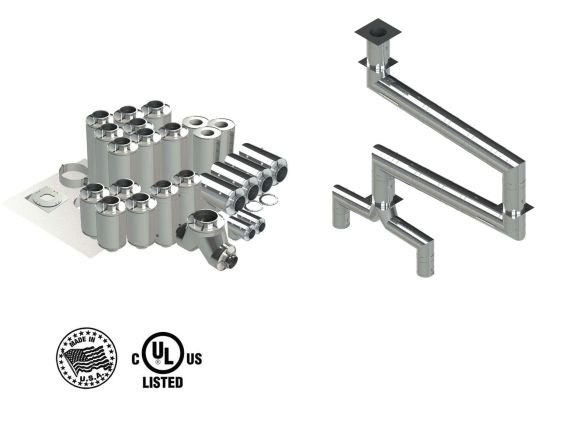

22"- Double Wall Kit, Reduced Clearance, Two 16" Connections, Grease Duct, Four 90's, 50' Straight, Including No Weld Hood and Fan Connections
SKU:
DWNAKS-RC-KIT21
![UL Certified Logos]({{media url="wysiwyg/Hoodmart/crop2.png"}})
DUCTWORK INCLUDES:
- 8x J-600 Sealant
- 12x DW-NAKS-CK22-LSB-RC Light Support Band
- 2x DW-NAKS-CK22-APS-RC Anchor Plate Support
- 2x DW-NAKS-CK16-24CL-RC 24" Cut Length
- 1x DW-NAKS-CK22-24CL-RC 24" Cut Length
- 6x DW-NAKS-CK22-48L-RC 48" Fixed Length
- 4x DW-NAKS-CK22-48CL-RC 48" Cut Length
- 2x DW-NAKS-CK22-IAD-RC Inline Access Door Length
- 2x DW-NAKS-CK16-87EA-RC 87 Degree Elbow w/ Access
- 4x DW-NAKS-CK22-87EA-RC 87 Degree Elbow w/ Access
- 1x DW-NAKS-CK22-87BHT16-RC 87 Deg Red Bull-Head Tee
- 2x DW-NAKS-CK16-NWHO-RC No-Weld Hood Adapter - Oval
- 1x DW-NAKS-CK22-FPE:36x36-RC Fan Plate Adapter - End
- 400 Series Outer /Inner Duct Jacket
- UL-1978 Listed
- Limited Lifetime Warranty
FEATURES:
- UL-1978 Listed grease duct
- Made in USA
- 400 Series outer duct jacket and inner jacket
- Overlapping flange connections
- Field cuttable fixed lengths
- Ceramic fiber insulation between inner/outer jacket
- Limited Lifetime Warranty
DUCTWORK OVERVIEW
HoodMart Grease Ducts. MADE IN USA and constructed of all stainless steel. UL-1978 Listed for direct competitiveness against single wall field-welded steel. Conforms to the requirements of NFPA-96. Double Wall Reduced Clearance is UL-1978 and UL-102 HT listed. The Double Wall Reduced Clearance models are two-hour rated resistant enclosure/duct assembly and can be used as an alternative to the two layers of field applied insulation.
