16" - Single Wall Kit, Grease Duct, Two 90's, 30' Straight, Including No Weld Hood and Fan Connections
SKU:
SWNAKS-KIT11

UL Certified Logos

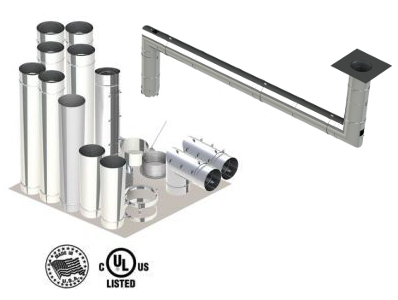

16" - Single Wall, Two 90's, 30' Straight, Including No Weld Hood and Fan Connections


Ductwork Includes:

  • Recommended Duct Sizes Heavy Duty Hood Lengths 8'-9'11'
  • Recommended Duct Sizes Medium Duty Hood Lengths 10'-10'11'
  • 3x J-600 Sealant
  • 5x SW-NAKS-CK16-LSB Light Support Band
  • 3x SW-NAKS-CK16-CLB Cut Length Band
  • 3x SW-NAKS-CK16-24L 24" Fixed Length
  • 6x SW-NAKS-CK16-48L 48" Fixed Length
  • 1x SW-NAKS-CK16-IAD Inline Access Door Length
  • 2x SW-NAKS-CK16-87EA 87 Degree Elbow w/ Access
  • 1x SW-NAKS-CK16-NWHO No-Weld Hood Adapter
  • 1x SW-NAKS-CK16-FPE:29x29 Fan Plate Adapter - End
  • 400 Stainless Steel
  • UL1978 Listed
  • Limited Lifetime Warranty

Features

  • UL-1978 Listed Grease Duct
  • 400 Stainless Steel construction
  • Made in USA
  • Overlapping flange connections
  • Field cuttable fixed lengths
  • Limited Lifetime Warranty

Overview

HoodMart Grease Ducts. MADE IN USA and constructed of all stainless steel. UL-1978 Listed for direct competitiveness against single wall field-welded steel. Conforms to the requirements of NFPA-96. Optional Double Wall Zero Clearance UL-2221. Factory-Built Enclosure listing as an alternate to two layers of field-applied insulation.

LET US HELP YOU

Help | How Can We Help You

How Can We Help You?

What Type of Hood Do You Need?

Help | Experts Are Ready to Help You

Experts Are Ready to Help You:

Custom Size Hoods

Ship in 5-7 Business Days.

Talk To A Specialist

Factory Support For All Questions.

CALL 24/7 1.800.715.1014

16" - Single Wall Kit, Grease Duct, Two 90's, 30' Straight, Including No Weld Hood and Fan Connections

SKU:
SWNAKS-KIT11
Orig.Price 3.944,69 $ Your Price 3.629,12 $
Shipping Estimator
Disponible
16" - Single Wall Kit, Grease Duct, Two 90's, 30' Straight, Including No Weld Hood and Fan Connections SWNAKS-KIT11 COMPRAR, DUCTOS, Kits de conducto de grasa de pared simple, Kit de pared simple - Straight w/2 - 90's
16" - Single Wall Kit, Grease Duct, Two 90's, 30' Straight, Including No Weld Hood and Fan Connections SWNAKS-KIT11 COMPRAR, DUCTOS, Kits de conducto de grasa de pared simple, Kit de pared simple - Straight w/2 - 90's16" - Single Wall Kit, Grease Duct, Two 90's, 30' Straight, Including No Weld Hood and Fan Connections SWNAKS-KIT11 COMPRAR, DUCTOS, Kits de conducto de grasa de pared simple, Kit de pared simple - Straight w/2 - 90's16" - Single Wall Kit, Grease Duct, Two 90's, 30' Straight, Including No Weld Hood and Fan Connections SWNAKS-KIT11 COMPRAR, DUCTOS, Kits de conducto de grasa de pared simple, Kit de pared simple - Straight w/2 - 90's

UL Certified Logos

16" - Single Wall, Two 90's, 30' Straight, Including No Weld Hood and Fan Connections


Ductwork Includes:

  • Recommended Duct Sizes Heavy Duty Hood Lengths 8'-9'11'
  • Recommended Duct Sizes Medium Duty Hood Lengths 10'-10'11'
  • 3x J-600 Sealant
  • 5x SW-NAKS-CK16-LSB Light Support Band
  • 3x SW-NAKS-CK16-CLB Cut Length Band
  • 3x SW-NAKS-CK16-24L 24" Fixed Length
  • 6x SW-NAKS-CK16-48L 48" Fixed Length
  • 1x SW-NAKS-CK16-IAD Inline Access Door Length
  • 2x SW-NAKS-CK16-87EA 87 Degree Elbow w/ Access
  • 1x SW-NAKS-CK16-NWHO No-Weld Hood Adapter
  • 1x SW-NAKS-CK16-FPE:29x29 Fan Plate Adapter - End
  • 400 Stainless Steel
  • UL1978 Listed
  • Limited Lifetime Warranty

Features

  • UL-1978 Listed Grease Duct
  • 400 Stainless Steel construction
  • Made in USA
  • Overlapping flange connections
  • Field cuttable fixed lengths
  • Limited Lifetime Warranty

Overview

HoodMart Grease Ducts. MADE IN USA and constructed of all stainless steel. UL-1978 Listed for direct competitiveness against single wall field-welded steel. Conforms to the requirements of NFPA-96. Optional Double Wall Zero Clearance UL-2221. Factory-Built Enclosure listing as an alternate to two layers of field-applied insulation.

Adobe PDF Downloads Spec Sheet Downloads:
