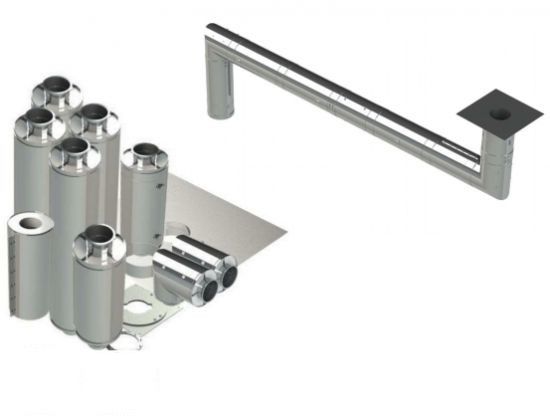

DUCTWORK INCLUDES:

• Recommended Duct Sizes Heavy Duty Hood Lengths 3'-4'5'
• Recommended Duct Sizes Medium Duty Hood Lengths 3'-5' 5'
• 3x J-600 Sealant
• 5x DW-NAKS-CK10-LSB-RC Light Support Band
• 2x DW-NAKS-CK10-APS-RC Anchor Plate Support
• 2x DW-NAKS-CK10-24L-RC 24" Fixed Length
• 1x DW-NAKS-CK10-24CL-RC 24" Cut Length
• 4x DW-NAKS-CK10-48L-RC 48" Fixed Length
• 2x DW-NAKS-CK10-48CL-RC 48" Cut Length
• 1x DW-NAKS-CK10-IAD-RC Inline Access Door Length
• 2x DW-NAKS-CK10-87EA-RC 87 Degree Elbow w/ Access
• 1x DW-NAKS-CK10-NWHA-RC No-Weld Hood Adapter
• 1x DW-NAKS-CK10-FPE:29x29-RC Fan Plate Adapter - End
• 400 Series Outer Duct Jacket and Inner Jacket
• UL-1978 Listed
• Limited Lifetime Warranty

FEATURES:

• UL-1978 Listed grease duct
• Made in USA
• 400 Series outer duct jacket and inner jacket
• Overlapping flange connections
• Field cuttable fixed lengths
• Ceramic fiber insulation between inner/outer jacket
• Limited Lifetime Warranty

DUCTWORK OVERVIEW

HoodMart Grease Ducts. MADE IN USA and constructed of all stainless steel. UL-1978 Listed for direct competitiveness against single wall field-welded steel. Conforms to the requirements of NFPA-96. Double Wall Reduced Clearance is UL-1978 and UL-102 HT listed. The Double Wall Reduced Clearance models are two-hour rated resistant enclosure/duct assembly and can be used as an alternative to the two layers of field applied insulation.
